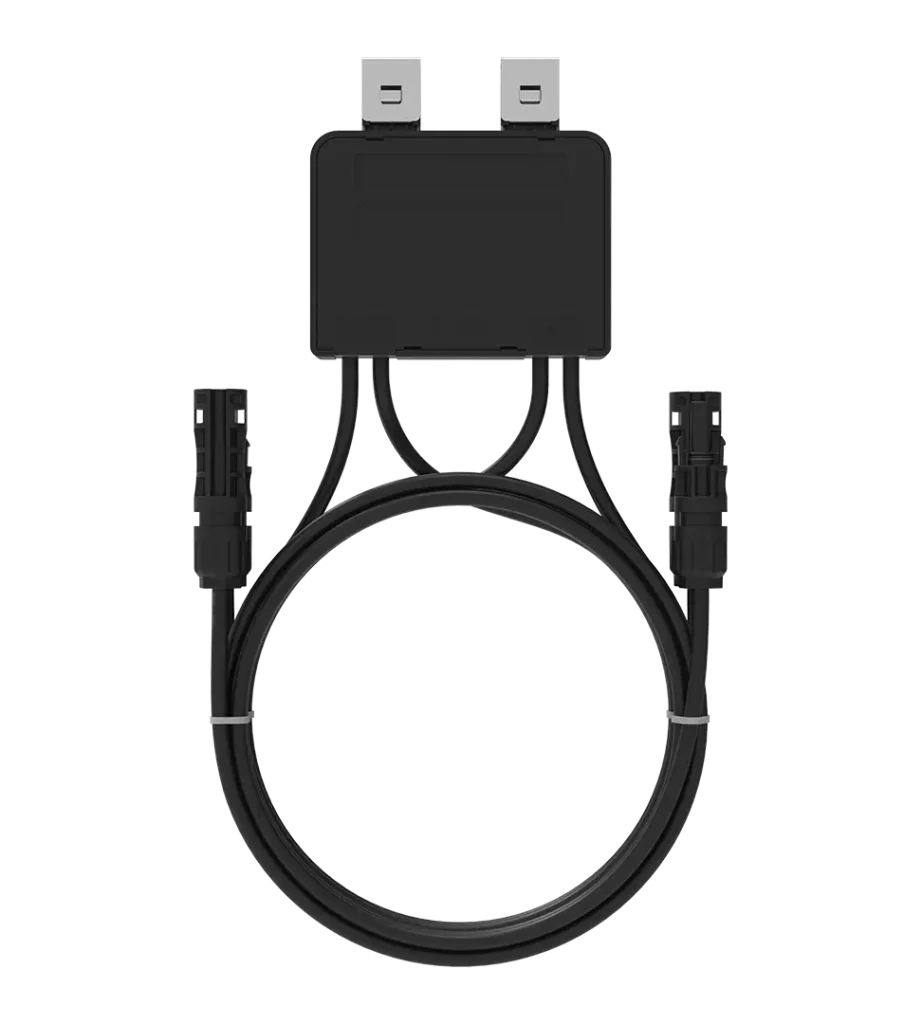

Optimezer SUN-XL02-B

Increase in power generation capacity:
Module-level maximum power point tracking (MPPT) can increase
power generation by 5% to 25%.
Monitoring:
Real-time monitoring of the operation status of each photovoltaic
module allows for timely detection of issues and precise
troubleshooting[1].
Stable and reliable communication:
Using photovoltaic cables carrier communication eliminates the
need for additional communication cables[1].
Rapid shutdown function:
Quickly reduces the DC voltage of the photovoltaic array to a safe
range[1].
*This function is only available when used with Optimizer Concentrators.
Details Anfragen
Overview
Additional Info
Model SUN-XL02-B
 Project Parameter
Maximum input power(W) 700W
Maximum input voltage(V) 80V
MPPT voltage range (V) 12-80V
Maximum input current (A) 15A
Peak conversion efficiency 99.5%
Installation specifications dimensions(mm) 105×105×22mm
Weight (g) 660g
Cable 4.0mm² input 70cm output 100cm
Connector MC4 Or Compatible with MC4
Operating temperature range -40℃~ +85℃
Level of protection IP68
Product certification CE
Communication mode
PLC
