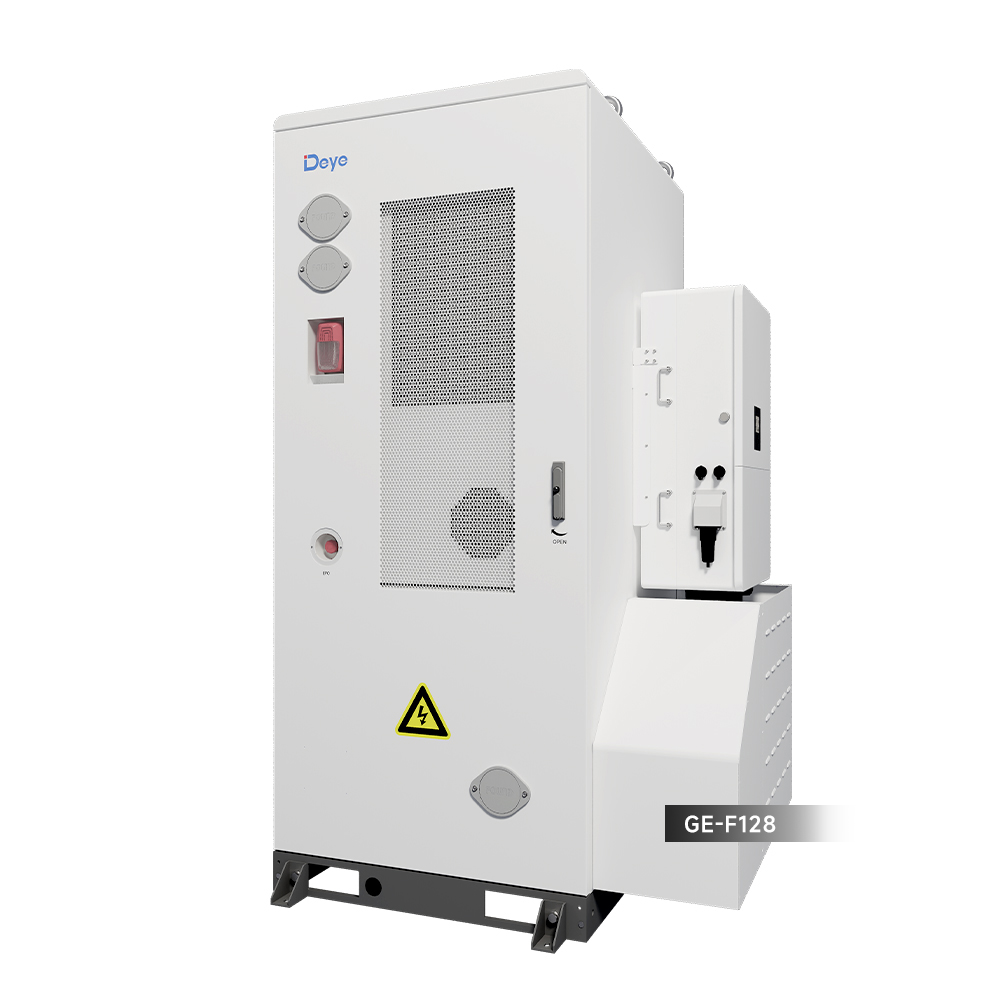

| Model | GE-F112-BC-2-A3 | GE-F128-BC-2-A3 |
|---|---|---|
| Main Parameters | ||
| Cell Type | LiFePO₄ | |
| Module Capacity (Ah) | 314 | |
| Module Nominal Voltage (Vdc) | 51.2 | |
| Module Energy (kWh) | 16.08 | |
| Module Qty In Series | 7 | 8 |
| System Nominal Energy (kWh) | 112.53 | 128.61 |
| System Usable Energy (kWh)*1 | 112.53 | 128.61 |
| System Nominal Voltage (Vdc) | 358.4 | 409.6 |
| System Operating Voltage (Vdc) | 280-408.8 | 320-467.2 |
| Rated DC Power (kW) | 56 | 64 |
| Charge/Discharge Max. Continuous Current(A)*2 | 180 | |
| Peak discharge@15s/25±2℃ | 285 | |
| Other Parameters | ||
| Fire Protection System | Aerosol and Water fire interface CO gas detection, Active exhaust and Explosion venting | |
| Cooling Method | Smart Air Cooling | |
| Communication Port | CAN, RS485 | |
| Communication protocol | CAN2.0, Modbus485 | |
| Operating Temperature(℃)*3 | -30-55 | |
| Recommend Storage Temperature(℃) | 0-35 | |
| Humidity | 5% – 95%RH (No Condensing) | |
| Altitude | 3000m | |
| IP Protection | IP55 | |
| Anti Corrosion Level | C4-M | |
| Dimension(W x D x H mm) | 998 x 1240 x 2405.5 | |
| Weight(kg) | 1575 | 1690 |
| Installation Location | Floor mount | |
| Cycle Life | ≥8000 (25±2℃ 0.5P EOL70%) | |
| Warranty | 10 years | |
| Certification | UN38.3,CE,IEC62619,IE62477,IEC62933-5-2,UL9540A | |
