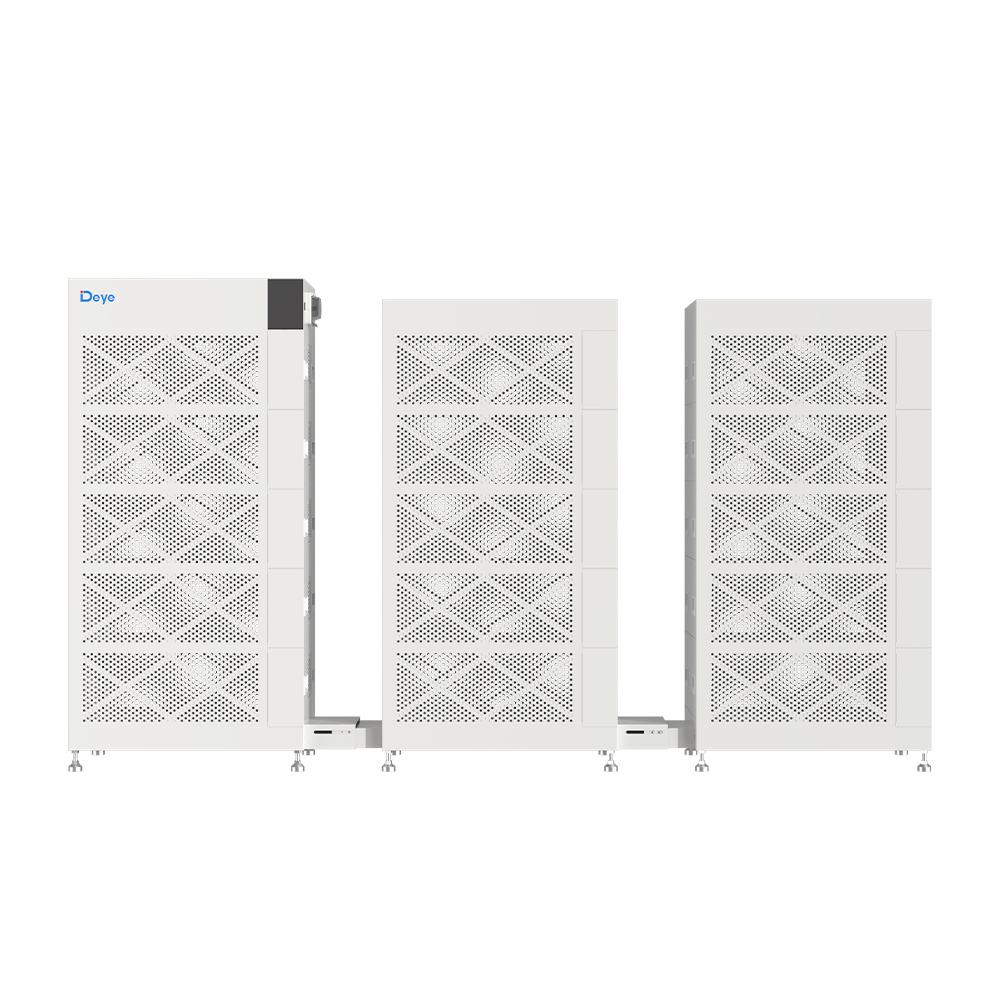

| Model | GB-W | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cell Chemistry | LiFePO₄ | ||||||||||||
| Module Energy (kWh) | 12.03 | ||||||||||||
| Module Capacity (Ah) | 235 | ||||||||||||
| Nominal Voltage (V) | 51.2 | ||||||||||||
| Battery Module Qty in series (Optional) | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | |
| System Nominal Voltage (Vdc) | 256 | 307.2 | 358.4 | 409.6 | 460.8 | 512 | 563.2 | 614.4 | 665.6 | 716.8 | 768 | 819.2 | |
| System Operating Voltage (Vdc) | 208-292 | 249.6-350.4 | 291.2-408.8 | 332.8-467.2 | 374.4-525.6 | 416-584 | 457.6-642.4 | 499.2-700.8 | 540.8~759.2 | 582.4~817.6 | 624-876 | 665.6~934.4 | |
| System Energy (kWh) | 60.1 | 72.1 | 84.2 | 96.2 | 108.2 | 120.3 | 132.3 | 144.3 | 156.4 | 168.4 | 180.4 | 192.5 | |
| System Usable Energy (kWh) | 54.1 | 64.9 | 75.8 | 86.6 | 97.4 | 108.2 | 119.1 | 129.9 | 140.7 | 151.6 | 162.4 | 173.2 | |
| System Nomianal Charge/ Discharge Power (kW) |
58.8 | 70.6 | 82.4 | 94.2 | 105.9 | 117.7 | 129.5 | 141.3 | 153 | 164.8 | 176.6 | 188.4 | |
| Charge / DischargeCurrent |
230 | ||||||||||||
| 322 (1s) | |||||||||||||
| Working Temperature (°C) | Charge:0-55 / Discharge:-20-55 | ||||||||||||
| Communication Port | CAN / RS485 | ||||||||||||
| Thermal Management | Natural air cooling | ||||||||||||
| Recommend Depth of Discharge | 90% | ||||||||||||
| Cycle Life | 25+2°C,0.5C/0.5C,70%EOL≥6000 | ||||||||||||
| Warranty | 10 years | ||||||||||||
